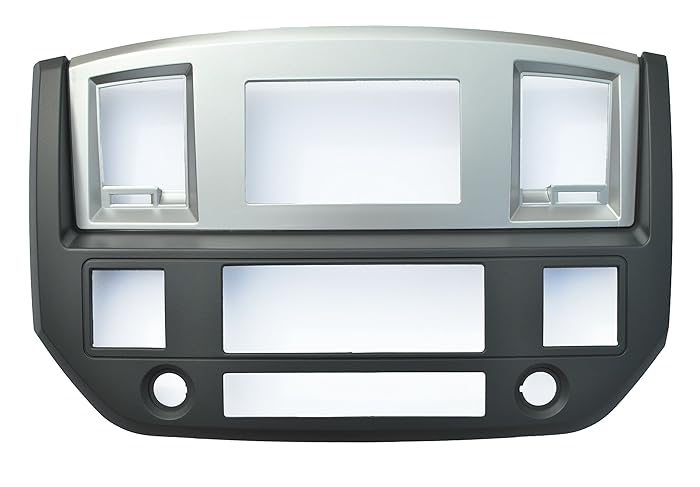

Top 9 2006 Dodge Dash Bezel Double Dinn

#1. Standard Wire Harness This wire harness is compatible with standard wiring only. Will not work on models with Factory Infinity Systems, Boston Acoustic Systems or CAN Bus Radios (models REF, REC, RAQ or RAK; The radio’s name can be found on the face of the radio). #2. Premium Wire Harness Module This wiring harness allows models with Factory Amplified Systems or CAN Bus Factory Radios REF, REC, RAQ and RAK (names can be found of front of radio) to replace Factory Radios while retaining all necessary safety and warning features #3. Premium Wire Harness Module w/ Steering Wheel Control This wiring harness allows models with Factory Amplified Systems or CAN Bus Factory Radios REF, REC, RAQ and RAK (names can be found of front of radio) to replace Factory Radios while retaining all necessary safety and warning features. This harness also allows you to keep your factory steering wheel controls and use them with your aftermarket radio.

Double DIN Installation Dash Kit for Select 1990-Up GM Vehicles

Ram 1500- (2006-2008) Ram 2500- (2006-2009) Ram 3500- (2006-2010) Ram 4000- (2006-2009) Ram 4500- (2008-2010)

The Install Centric ICCR6BN complete installation solution is an ideal choice for installing an aftermarket stereo into your 2007-14 Chrysler/Dodge/Jeep vehicles without altering the dash. Everything you need to perform a basic aftermarket stereo installation is included: the dash kit, wire harness, antenna adapter and wire connectors. The Double DIN dash kit includes a kit panel, a trim ring and brackets and is manufactured from high-grade ABS with precision tolerances so it delivers a gapless fit between the dash and the kit. The wire harness allows you to connect to the factory harness without cutting any wires. The ICCR6BN kit includes step by step instructions and colored coded wires for an easier installation.

Ram 1500- (2006-2008) Ram 2500- (2006-2009) Ram 3500- (2006-2010) Ram 4000- (2006-2009) Ram 4500- (2008-2010)

Up until now installing an Aftermarket Double Din Radio into the 2005-2007 Jeep Grand Cherokee meant having to buy the factory navigation bezel ( 175 ), an aftermarket radio install dash kit ( 12 ), wiring harness and a antenna adapter (6). However our new kit allows you to replace your Factory Radio with an aftermarket Double Din radio at a reasonable price with a cleaner look. We have taken the extra steps out for buying multiple parts and lowered the price plus you will get a better looking installed with our kit. This wire harness is compatible with standard wiring only. Will not work on models with Factory Infinity Systems, Boston Acoustic Systems or CAN Bus Radios (models REF, REC, RAQ or RAK; The radio’s name can be found on the face of the radio). Installation Directions- Tools needed for install – Philips screw driver, Dremel (rotary tool) and a Soldering Iron. You can buy a Soldering gun at Harbor freight for as low as 3.99 and a Dremel (rotary tool) knock off for 10.79 or just look on Amazon. Step 1: Gently pull on the factory bezel, it is only held on by a few plastic tabs up top and there are 2 clips on each side of the AC vents (totaling 4) and 1 clip at the bottom.. Step 2: You will see 4 Philips screws holding the factory radio in place, remove the screws and the radio will be lose and ready to come out.. Keep the screw for installation of new double din radio.. Step 3: Next unplug all the wire harness and antenna cable leading into the factory radio. You will now have the empty hole ready for new double din radio and your newly purchased dash kit (DO NOT DISCARD THE FACTORY BEZEL AS YOU WILL NEED THE AC VENTS TO PUT ON THE NEW BEZEL) Step 4: The removal of the AC vents from the factory bezel.

Allows the installation of a 1/4 inch or 1/2 inch din equalizer with supports. Bolts directly to the factory radio mounting locations. High-grade ABS plastic construction. Allows the installation of a 1/4 inch or 1/2 inch din equalizer with supports. Bolts directly to the factory radio mounting locations. High-grade ABS plastic construction.

Radio Dash kit, wire harness, and antenna adapter for installing an aftermarket radio- Dash kit works with a Double din Radio- Dash kit has a black finish- Wire harness and antenna adapter plugs into vehicle’s connections. Very Important: Wire harness only works with standard non-premium amp factory systems- Not compatible with amp systems like Bose, Infinity, etc.- Red ignition wire of the new radio has to be run separately from the vehicle radio harness (factory radio plug has no ignition power wire). Will not retain some features like steering audio controls, rear DVD audio, etc- extra adapters required. Some off-brand radios might not be true Double Din Spec (slightly oversized/undersized) which means this kit will need to be modified or sanded down. Compatible with: Chrysler: 2011-2014 200, 2008-2010 300, 2008 – 2009 Aspen, 2007 – 2010 Sebring, 2008 – 2016 Town and Country; Dodge: 2007 – 2014 Avenger, 2009 – 2012 Caliber, 2008 – 2014 Challenger, 2008 – 2010 Charger, 2008 – 2011 Dakota, 2008 – 2009 Durango, 2008 – 2016 Grand Caravan, 2009 – 2010 Journey, 2008-2009 Magnum, 2006 – 2011 Nitro, 2009 – 2011 Ram 1500, 2010-2011 Ram 2500 / 3500; Jeep: 2008-2010 Commander, 2009 2010 2011 2012 2013 2014 2015 2016 Compass, 2008 – 2010 Grand Cherokee, 2008 – 2013 Liberty, 2009 – 2016 Patriot, 2007 – 2016 Wrangler, 2008 – 2009 Mitsubishi Raider, 2009 – 2013 Volkswagen Routan
