629 reviews analysed

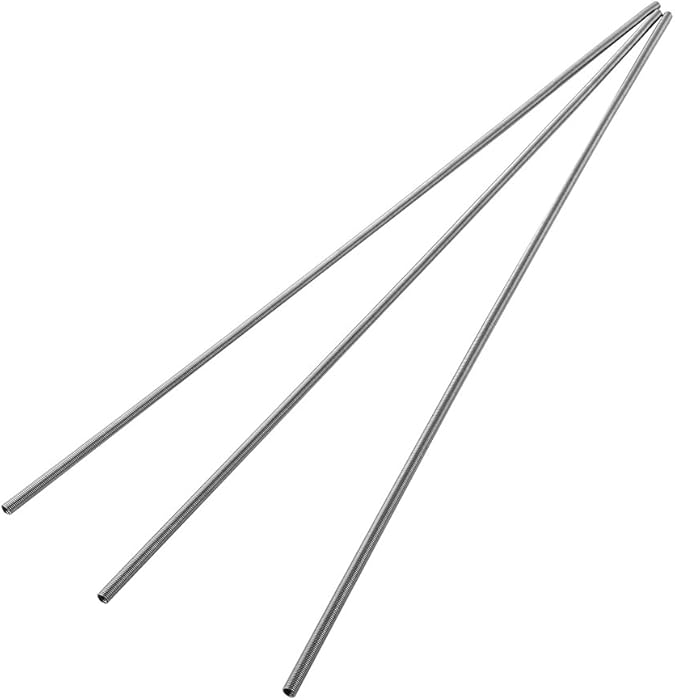

1. 3pcs AC 220V 1200W Heating Element Coil Pottery Kiln Furnace Heater Wire Dryer Restring Kit
Feature
- FeCrAl heating alloy, high temperature resistant, corrosion resistant
- Good thermal efficiency, even heating, safe use and long service life
- 3pcs Heating Element Coils
- Voltage: AC 220V
- Power: 1200W
- Temperature: 500℃~600℃
- Outer Diameter: 5.6mm / 0.22″
- Length: 474mm / 18.6″
- Widely used in small electric furnace, muffle, heating air conditioning equipment, bakery, electrical heated tube, household electric appliances
Description
They are heating element wire coils for use in small electric furnace, muffle, heating air conditioning equipment, bakery, electrical heated tube, household electric appliances. Made from heating alloy, they are high temperature resistant and corrosion resistant. There are 3 coils and each of them has good thermal efficiency and is safe to use.
Warning:
1. Please stretch these heating element coils before connecting to power, or they would burn and cause damage.
2. They can not be cut into parts to use, or the power will increase, which is dangerous.
Specifications:
Material: FeCrAl
Voltage: AC 220V
Power: 1200W
Temperature: 500℃~600℃
Outer Diameter: 5.6mm / 0.22″
Length: 474mm / 18.6″
Quantity: 3pcs
Weight: 86g (approx.)
Package Included:
3 x Heating Element Coils
Note:
There may be 1-2mm error because of manual measurement. Thanks for your understanding.
2. 220V 2500W Resistance Wire Kiln Furnace Heating Coil Kit Element Heat Resistant Wire
Feature
- GREAT QUALITY: Made from FeCrAl heating alloy, high temperature resistant, corrosion resistant, high quality guarantees safety.
- GOOD PERFORMANCE: Good thermal efficiency, even heating, safe use and long service life.
- STRETCH BEFORE USE:Please stretch this heating element coil before connecting it to power, or it would burn and cause damage.
- CAN NOT BE CUT: It can not be cut into parts to use, or the power will increase which is dangerous.
- WIDELY USED: Used in small electric furnace, muffle, heating air conditioning equipment, bakery, electrical heated tube, household electric appliances.
Description
Description:
This is a heating element wire coil for use in small electric furnace, muffle, heating air conditioning equipment, bakery, electrical heated tube, household electric appliances. Made from heating alloy, it is high temperature resistant and corrosion resistant. This coil has good thermal efficiency and it is safe to use.
Features:
Made from FeCrAl heating alloy, high temperature resistant, corrosion resistant.
Good thermal efficiency, even heating, safe use and long service life. Please stretch this heating element coil before connecting it to power, or it would burn and cause damage. It can not be cut into parts to use, or the power will increase which is dangerous.
Used in small electric furnace, muffle, heating air conditioning equipment, bakery, electrical heated tube, household electric appliances.
Specifications:
Material: FeCrAl
Voltage: AC 220V
Power: 2500W
Outer Diameter: 6.9mm / 0.27″
Length: 745mm / 29.3″
Quantity: 1pc
Weight: 87g(approx.)
Package Includes:
1 x Heating Coil
3. Heater Wire Heater Coil Kit Corrosion Resistant 2Pcs AC 220V 1500W Kiln Furnace Heating Element Coils High Resistance Wir
Feature
- Made from FeCrAl heating alloy, high temperature resistant, corrosion resistant
- Good thermal efficiency, even heating, safe use and long service life
- Please stretch these heating element coil before connecting to power, or they would burn and cause damage
- They can not be cut into parts to use, or the power will increase which is dangerous
- Used in small electric furnace, muffle, heating air conditioning equipment, bakery, electrical heated tube, household electric appliances
Description
Description:
They are heating element wire coils for use in small electric furnace, muffle, heating air conditioning equipment, bakery, electrical heated tube, household electric appliances. Made from heating alloy, they are high temperature resistant and corrosion resistant. These coils have good thermal efficiency and they are safe to use.
Features:
Made from FeCrAl heating alloy, high temperature resistant, corrosion resistant.
Good thermal efficiency, even heating, safe use and long service life. Please stretch these heating element coils before connecting to power, or they would burn and cause damage. They can not be cut into parts to use, or the power will increase which is dangerous.
Used in small electric furnace, muffle, heating air conditioning equipment, bakery, electrical heated tube, household electric appliances.
Specifications:
Material: FeCrAl
Voltage: AC 220V
Power: 1500W
Outer Diameter: 5.8mm / 0.22″
Length: 554mm / 21.8″
Quantity: 2pcs
Weight: 80g(approx.)
Package Includes:
2 x Heating Coils
4. 3pcs Resistance Wire Kiln Furnace Heating Coil Heater Wire Dryer Restring Kit 1200W
5. Inkbird ITC-308 Max.1200W Heater, Cool Device Temperature Controller, Carboy, Homebrew, Fermenter, Greenhouse Terrarium Temp. Control
Feature
- [Convenient Design] Plug and play design, easy to use. Support °C/°F display.
- [Dual Relay Output] Be able to connect with refrigeration and heating equipment at the same time.
- [Dual Display Window] Be able to display measured temperature and set temperature at the same time.
- [Buzzer Alarm] High and low temperature alarms are available when the temperature is over or the sensor is with issue.
- [Warranty & Safe] Warranty: 1 year. Maximum output load: 1100W(110V). It is with temperature calibration and compressor delay which can protect your refrigeration.
Description
Specification:
Temperature Control Range: -50~99°C / -58~210°F
Temperature Resolution: 0.1°C / 0.1°F Temperature Accuracy: ±1°C (-50~70°C) / ±1°F (-50~160°F)
Temperature Control Mode :On/Off Control, Heating and Cooling
Input Power: 100 ~240VAC, 50Hz/60Hz
Temperature Control Output: Max. 10A, 100V~240V AC
Buzzer Alarm: High and Low Temperature Alarm
Sensor Type: NTC sensor (Including)
Sensor Length: 2m / 6.56ft
Input Power Cable Length: 1.5m (5ft)
Output Power Cable Length: 30cm (1ft)
Body Dimension: 140x68x33mm (5.5×2.7×1.3inch)
Socket Dimension: 85x42x24mm (3.3×1.7x1inch)
Ambient Temperature: -30~75°C / -22~167°F
Storage Temperature: -20~60°C / -4~140°F
Humidity: 20~85% (No Condensate)
Warranty: 1 Year
Package Included:
1x ITC-308 Temperature Controller
1x Manual
6. Inkbird ITC-106VH PID Temperature Thermostat Controllers, Fahrenheit & Centigrade, 100ACV – 240ACV with K Sensor for Sous Vide, Home Brewing, Oven, Incubator
7. PID Temperature Controller Meter Indicator, Jaybva Digital Programmable Universal Thermostat Fahrenheit and C Display SSR and Alarm Output 25A Solid State Relay Thermocouple Probe Included
8. Inkbird F Display PID Temperature Controllers Thermostat ITC-106VH, K Sensor, Heat Sink and Solid State Relay, 100ACV – 240ACV (ITC-106VH + 40A SSR + White Heat Sink + K Probe)
Feature
- ✨✨Support reading with Centigrade or Fahrenheit unit
- ✨✨Dual display window, be able to display measured temperature and set temperature at the same time
- ✨✨Simplify operational processes and you don’t need to operate more steps if you want to set the definite value
- ✨✨High accuracy of displaying and controlling. Manual and Auto turning are available
- ✨✨1 Year Warranty
Description
Specification
Front Panel Dimension: DIN 48mm(W)X48mm(L)
Power Supply Voltage: AC 100-240V 50/60Hz
Operating voltage range： 85～110% Rated voltage
Power Consumption： Approx. 5VA（100～240VAC）
Character: PV: 4 digital 9.9mm height Red LED Letters
SV: 4 digital 8mm height Green LED Letters
Display Accuracy: ±0.2%FS 0.1ºC（＜1000ºC）；1ºC（≥1000ºC）
Period of Sampling： 0.5S
Temperature Compensation： 0-50ºC
Life expectancy of Relay: Mechanical≥10,000,000 operations Electrical≥10,000,000 operations
Weight: Approx. 140g
Environmental Conditions: -10～55ºC（no icy or condensation）, RH 35-85% Humidity
Storage Temperature: -25～65ºC（no icy or condensation）
Data Storage: 10year Cutout size: 45x45mm
Mounting Method: Flush mounting and screw terminals
K-Type Thermocouple Temperature Sensing For Temperature Controller
Temperature rang :0-400 C
Sensor Dia: 4.5mm
Cable Length: 2m(6.6ft)
External Shielding: Insulated Shielding
Internal Insulation:Fiberglass
40A SSR SOLID STATE RELAY for temperature controller
Specifications:
Load Voltage: 24-380VAC
Load Current: 25A
Input Voltage: DC 3-32V
Pacakge:
1x Inkbird ITC-106VH Controller
1 x 40A SSR
1x Mounting bracket
1 x K sensor
1x White Heat Sink
1x Manual
9. MYPIN® Universal Digital TA6-SNR PID Temperature Controller with Relay DIN 1/8 SSR-25DA and K type thermocouple,Dual Display for F/C,7 Output Combinations,Accuracy: 0.2%
Feature
- √ ● Dual display for Fahrenheit(F) and Celsius(C)，Range: -1999 to 9999 (depends on the input signal)
- √ ● Input: Thermo Resistor: PT100, Cu50，Thermocouple: K,Wre3 ~ Wre25 ， Main Output: SSR: Open circuit: 4V, Closed Circuit: 24V 40mA DC
- √ ● K type thermocouple Temperature rang:0-800℃, Sensor Dia: 4.5mm, Cable Length: 2m
- √ ● Solid state relay SSR-25DA Load Voltage: AC 24-380V, Load Current: 25A, Input Voltage: DC 3-32V
- √ ● Packing details: 1 x SNR Temperature Controller( DIN 1/8), 1 x SSR-25DA Solid State Relay, 1 x K Type Thermocouple( 6 Feet)
Description
This is a bid for set of temperature controller TA6-SNR, K type thermocouple and solid state relay SSR-25DA. The dual line display universal digital programmable temperature controller supports many types of thermocouple sensor. It can be powered by 90-265V AC/DC, Comsumption:5VA. DIN 1/8. It can also worked as simple digital adjustor; The solid state relay SSR-25DA;The 6 feet K type thermocouple.
Temperature Controller, model no. TA6-SNR
Character:
a.Individually programmable PID control or ON/OFF control.
b.Auto-tuning PID adjustment
c.Compact design. DIN 1/8, great form-factor to be included/build-in to your product
Specifications
Display: Dual display for Fahrenheit(F) and Celsius(C)
Range: -1999 to 9999 (depends on the input signal)
Input: Thermo Resistor: PT100, Cu50
Thermocouple: J,S,K,E,Wre3 ~ Wre25
Main Output: SSR: Open circuit: 4V, Closed Circuit: 24V 40mA DC
Manual/Auto-tuning PID cooling/heating control(or normal alarm output)
1 RELAY alarm:Normal open, capacity 250V/3A AC or 30V/3A DC
7 different Dual Output combinations with: high / low / high deviation / low deviation/ interval / out of interval /breakage alarm
Accuracy: 0.2%
Dimension: DIN: 1/8 (48WmmX96HmmX80Lmm) /Approx. 1.89*3.78*3.15 inch
Net Weight: about 300g /10.5 oz
Solid state relay, SSR-25DA
Load Voltage: AC 24-380V
Load Current: 25A
Input Voltage: DC 3-32V
Packing details: 1x temperature controller, model no.: TA6-SNR
1x solid state relay,model no.: SSR-25DA
1x K type thermocouple
NOTE: If you need a PT100 Temperature Sensor,Please search Asin on Amazon: B00X6RIARO. Customer is first,We try our best to offer
10. USA Cast Master Melting Furnace Smelting Furnace for Foundry Metal Smelter Kiln Kit GG3000 KG Crucible Tongs Smelting Recycling Scrap Refining Jewelry Casting Electronic Furnace 1800 Watt 2000 Degrees
Feature
- START MELTING METAL FOR FUN AND PROFIT From precious metals like old gold and silver jewelry, to the lowly aluminum can, Cast Master’s GG 3000 Furnace has the features you need
- MORE THAN THE FURNACE We include a set of heat-resistant tongs, sturdy 3 KG crucible, furnace with 110/120v plug, and the most thorough manual available
- CAST MASTER ELITE We’ve been selling and providing support for our furnaces here from the US for years. You can purchase with confidence
- PERFECT FOR HOBBIEST AND PROFESSIONAL JEWELER ALIKE With a top temp of 2000°F you’ll never run out of uses
- MAKES A GREAT GIFT Perfect for the up and coming artisan, amateur forger, scrap-metal collector, or lady blacksmith in your life
Conclusion
By our suggestions above, we hope that you can found Kiln Heating Element Kit for you.Please don’t forget to share your experience by comment in this post. Thank you!
