Top 10 Liquid Filled Vacuum Pressure Gauge

0
582 reviews analysed

1. HFS 2-1/2" Oil Filled Vacuum Pressure Gauge – SS/Br 1/4" NPT Lower Mount -30HG/0

HFS 2-1/2" Oil Filled Vacuum Pressure Gauge - SS/Br 1/4" NPT Lower Mount -30HG/0

Feature

Description

Dial Size: 2-1/2″ Dial Size (Crimped Casing)
Accuracy: +/- 3/2/3%
Scale: Dual Scale – PSI / Bar
Movement: Copper Alloy
Bourdon Tube: Copper Alloy
Window: Polycarbonate
Case: Stainless Steel case for protection in harsh environments
Connection: Copper Alloy Lower Mount; 1/4″ NPT (for 2-1/2″ dial)
Normal Ambient Temp.: -4F to +140F (-20C to +60C)
Liquid Filling: Glycerin oil filled to enhance the reliability and integrity;
helps dampen the effect of vibration and pulsation;
lubricates the movement and extends the life of gauge.

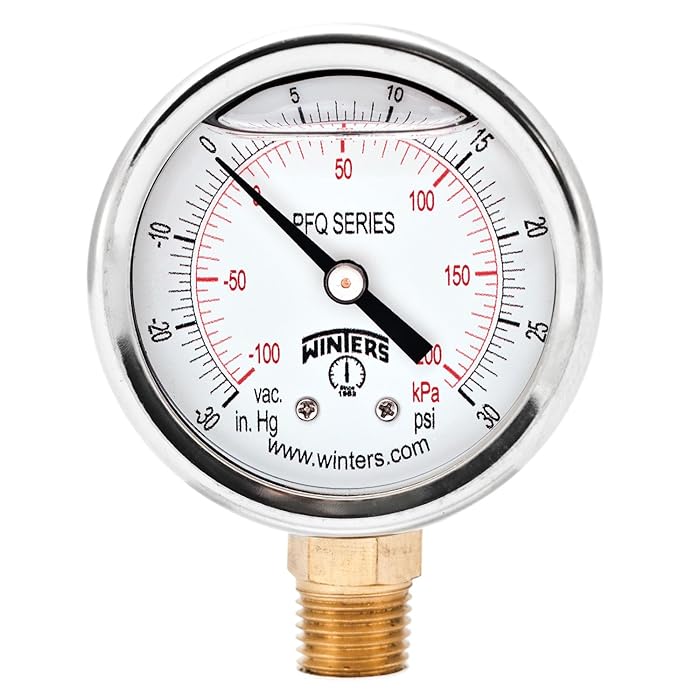

2. Winters PFQ Series Stainless Steel 304 Dual Scale Liquid Filled Pressure Gauge with Brass Internals, 30" Hg Vacuum-0-30 psi/kpa,2-1/2" Dial Display, +/-1.5% Accuracy, 1/4" NPT Bottom Mount

Winters PFQ Series Stainless Steel 304 Dual Scale Liquid Filled Pressure Gauge with Brass Internals, 30" Hg Vacuum-0-30 psi/kpa,2-1/2" Dial Display, +/-1.5% Accuracy, 1/4" NPT Bottom Mount

Feature

Description

The Winters PFQ series pressure gauge with brass wetted parts has a glycerin-filled circular dial enclosed in a stainless steel 304 case, and a male connection, and measures pressure with a single or dual scale with an accuracy of + or – 1.5% or 2.5%. The OT58 brass wetted parts are for measuring non-corrosive liquid and gas pressure. The stainless steel 304 case is also corrosion resistant and is Ingress Protection certified IP65 for protection against solid objects, including dust or liquids. The circular dial comes in 1.5″ (40 mm), 2″ (50 mm), 2.5″ (63 mm), or 4″ (100 mm) diameters and is filled with glycerin for protection against vibration and pulsation. The dial is white aluminum with black and red markings. It has an aluminum, anodized black, pointer and the lens is polycarbonate for high impact resistance. The gauge measures pressure with a single psi scale or a dual scale of psi/kPa, psi/bar, Hg. vacuum/kPa, or Hg. vacuum/bar. The gauge is accurate to + or – 2.5% of full scale value for the 1.5″ and 2″ dials and accurate to + or – 1.5% of full scale value for the 2.5″ and 4″ dials. The male connection comes with a 1/8″, 1/4″, or 1/2″ NPT (National Pipe Thread) rate with a restricted orifice and is located at the bottom or center back of the gauge. The movement is OT59 brass, and the welding is silver alloy. The 6″ (150 mm) socket gasket, the fill plug, and the lens ring gasket are all made of nitrile rubber for a tight seal. The over-pressure limit is 25% for pressures up to 1,400psi (9,653kPa) and 15% for pressures over 1,400psi (9,653kPa). The working pressure is a maximum of 75% of full scale value. The operating temperature is -4 to 150 degrees F (-20 to 65 degrees C). This pressure gauge is suitable for pumps, compressors, hydraulic presses, machinery, pneumatic equipment, and motors in harsh environments.

Pressure gauges are instruments used to measure the pressure of a gas or liquid inside a vessel and, often, to help ensure the optimal amount of pressure for a given application. Pressure gauges can range from everyday instruments, such as those used to measure the air pressure in a car or bicycle tire, to highly accurate gauges used in mechanical and industrial processing. Most often, pressure gauges measure pressure relative to another reference. For instance, gauge pressure measures pressure relative to ambient air. An example of a pressure gauge measuring relative to ambient air is a tire pressure gauge or a blood pressure gauge. Differential pressure is the difference in pressure between two points, such as when measuring liquid flow along various points in a pipeline. An absolute pressure gauge measures pressure relative to a perfect vacuum, such as an atmospheric or barometric pressure gauge. All types of pressure gauges include either a male or a female mount to connect to the vessel where pressure is being measured, and display results on a dial with varying increments of measure across a given range.

Winters Instruments manufactures pressure gauges, thermometers, diaphragm seals, pressure transmitters, and switches. The company, founded in 1953, is headquartered in Toronto, Canada.

3. Winters PFQ Series Stainless Steel 304 Dual Scale Liquid Filled Pressure Gauge with Brass Internals, 30" Hg Vacuum-0-200 psi/kpa,2-1/2" Dial Display, +/-1.5% Accuracy, 1/4" NPT Bottom Mount

Winters PFQ Series Stainless Steel 304 Dual Scale Liquid Filled Pressure Gauge with Brass Internals, 30" Hg Vacuum-0-200 psi/kpa,2-1/2" Dial Display, +/-1.5% Accuracy, 1/4" NPT Bottom Mount

Feature

Description

The Winters PFQ series pressure gauge with brass wetted parts has a glycerin-filled circular dial enclosed in a stainless steel 304 case, and a male connection, and measures pressure with a single or dual scale with an accuracy of + or – 1.5% or 2.5%. The OT58 brass wetted parts are for measuring non-corrosive liquid and gas pressure. The stainless steel 304 case is also corrosion resistant and is Ingress Protection certified IP65 for protection against solid objects, including dust or liquids. The circular dial comes in 1.5″ (40 mm), 2″ (50 mm), 2.5″ (63 mm), or 4″ (100 mm) diameters and is filled with glycerin for protection against vibration and pulsation. The dial is white aluminum with black and red markings. It has an aluminum, anodized black, pointer and the lens is polycarbonate for high impact resistance. The gauge measures pressure with a single psi scale or a dual scale of psi/kPa, psi/bar, Hg. vacuum/kPa, or Hg. vacuum/bar. The gauge is accurate to + or – 2.5% of full scale value for the 1.5″ and 2″ dials and accurate to + or – 1.5% of full scale value for the 2.5″ and 4″ dials. The male connection comes with a 1/8″, 1/4″, or 1/2″ NPT (National Pipe Thread) rate with a restricted orifice and is located at the bottom or center back of the gauge. The movement is OT59 brass, and the welding is silver alloy. The 6″ (150 mm) socket gasket, the fill plug, and the lens ring gasket are all made of nitrile rubber for a tight seal. The over-pressure limit is 25% for pressures up to 1,400psi (9,653kPa) and 15% for pressures over 1,400psi (9,653kPa). The working pressure is a maximum of 75% of full scale value. The operating temperature is -4 to 150 degrees F (-20 to 65 degrees C). This pressure gauge is suitable for pumps, compressors, hydraulic presses, machinery, pneumatic equipment, and motors in harsh environments.

Pressure gauges are instruments used to measure the pressure of a gas or liquid inside a vessel and, often, to help ensure the optimal amount of pressure for a given application. Pressure gauges can range from everyday instruments, such as those used to measure the air pressure in a car or bicycle tire, to highly accurate gauges used in mechanical and industrial processing. Most often, pressure gauges measure pressure relative to another reference. For instance, gauge pressure measures pressure relative to ambient air. An example of a pressure gauge measuring relative to ambient air is a tire pressure gauge or a blood pressure gauge. Differential pressure is the difference in pressure between two points, such as when measuring liquid flow along various points in a pipeline. An absolute pressure gauge measures pressure relative to a perfect vacuum, such as an atmospheric or barometric pressure gauge. All types of pressure gauges include either a male or a female mount to connect to the vessel where pressure is being measured, and display results on a dial with varying increments of measure across a given range.

Winters Instruments manufactures pressure gauges, thermometers, diaphragm seals, pressure transmitters, and switches. The company, founded in 1953, is headquartered in Toronto, Canada.

4. Winters PFQ Series Stainless Steel 304 Dual Scale Liquid Filled Pressure Gauge with Brass Internals, 30" Hg Vacuum-0-15 psi/kpa,2-1/2" Dial Display, +/-1.5% Accuracy, 1/4" NPT Bottom Mount

Winters PFQ Series Stainless Steel 304 Dual Scale Liquid Filled Pressure Gauge with Brass Internals, 30" Hg Vacuum-0-15 psi/kpa,2-1/2" Dial Display, +/-1.5% Accuracy, 1/4" NPT Bottom Mount

Feature

5. Measureman 2-1/2" Dial Size, Oil Filled Pressure Gauge, 0-30psi/kpa, 304 Stainless Steel Case, 1/4"NPT Lower Mount

Measureman 2-1/2" Dial Size, Oil Filled Pressure Gauge, 0-30psi/kpa, 304 Stainless Steel Case, 1/4"NPT Lower Mount

Feature

Description

Size:0-30 psi/kpa

Description
This liquid filled pressure gauge is designed for media which is not corrosive to brass, also where vibration and pulsation is a concern.

Dial size : 2-1/2″
Process connection : 1/4″NPT lower mount
Case : 304 stainless steel case and crimped ring
Window : Polycarbonate
Dial plate : aluminum, with pointer stop
Pointer : Aluminum, black, DIN style
Boudon tube : Copper alloy
Movement : Brass
Connection : Brass, one piece design
Oil cap : rubber, gray color
Filling : Glycerin filled, dampens the effect of vibration and pulsation; lubricates the movement and extends the life of gauge.
IP class : IP67
Accuracy : +/-3-2-3%
Range : 0-30psi/kpa dual scale, psi outside, kpa inside
Working temperature : -4 to 140 deg F/-20 to 60 deg C
Ambient temperature : 140 deg F/60 deg C maximum

Meaureman has 20 years rich experience in the measuring of pressure, temperature, flow, level industries, The “Measureman” branded products are the combination of continuous good quality and affordable price. “Measureman” products are selected and designed by professional engineers.

6. HFS (R) 2" Oil Filled Vacuum Pressure Gauge – SS/Br 1/4" NPT Lower Mount -30HG/0

HFS (R) 2" Oil Filled Vacuum Pressure Gauge - SS/Br 1/4" NPT Lower Mount -30HG/0

Feature

Description

Dial Size: 2″ Dial Size (Crimped Casing)
Accuracy: +/- 3/2/3%
Scale: Dual Scale – PSI / Bar
Movement: Copper Alloy
Bourdon Tube: Copper Alloy
Window: Polycarbonate
Case: Stainless Steel case for protection in harsh environments
Connection: Copper Alloy Lower Mount; 1/4″ NPT (for 2″ dial)
Normal Ambient Temp.: -4F to +140F (-20C to +60C)
Liquid Filling: Glycerin oil filled to enhance the reliability and integrity;
helps dampen the effect of vibration and pulsation;
lubricates the movement and extends the life of gauge.

7. NEW STAINLESS STEEL LIQUID FILLED PRESSURE GAUGE WOG WATER OIL GAS 0 to 100 PSI BACK MOUNT 0-100 PSI 1/8" NPT 1.5" FACE DIAL FOR COMPRESSOR HYDRAULIC AIR TANK

NEW STAINLESS STEEL LIQUID FILLED PRESSURE GAUGE WOG WATER OIL GAS 0 to 100 PSI BACK MOUNT 0-100 PSI 1/8" NPT 1.5" FACE DIAL FOR COMPRESSOR HYDRAULIC AIR TANK

Feature

Description

1.5% Span of accuracyThis style liquid gauge can handle any application between-104 Degrees through 158 Degrees FLiquid/Glycerin Filled gauges enhance the reliability and integrity of the measuring systems for long periods. The Glycerin Filling helps dampen the effects of vibration and pulsation. It also lubricates the moverment which extends the life of the gauge.- Stainless Steel Case – Copper alloy Wetted parts – Polycarbonate Lens- Glycerine Filled

8. YZM Stainless Steel 304 Single Scale Liquid Filled Pressure Gauge with Brass Internals, 2-1/2" Dial Display, -1.5% Accuracy, 1/4" NPT Bottom Mount,Water Pressure Gauge. (0-150 psi)

YZM Stainless Steel 304 Single Scale Liquid Filled Pressure Gauge with Brass Internals, 2-1/2" Dial Display, -1.5% Accuracy, 1/4" NPT Bottom Mount,Water Pressure Gauge. (0-150 psi)

Feature

9. CARBO Instruments 2 1-2" Pressure Gauge, Stainless Steel Case, Chrome Plated Brass Connection, Lqiuid Filled, Vacuum -30 Hg/0, Lower Mount 1/4" NPT

CARBO Instruments 2 1-2" Pressure Gauge, Stainless Steel Case, Chrome Plated Brass Connection, Lqiuid Filled, Vacuum -30 Hg/0, Lower Mount 1/4" NPT

Feature

Description

Style:-30 inHg

CARBO Instruments 2- 1/2″ Pressure Gauge, Stainless Steel Case, Liquid Filled, Vacuum -30Hg/-1 bar, Lower Mount 1/4″ NPT Reliable and dampen Pulsation & Vibration Oil, Water, Air, Compressor, Hydraulics, HVAC, Gaseous & Liquid media that are not highly viscous or crystallizing and not corrosive or oxidizing to copper alloy parts

10. Measureman 2" Dial Size, Liquid Filled Pool Filter Pressure Gauge, 304 Stainless Steel Case, 0-35psi/250kpa,1/4" NPT Center Back Mount

Measureman 2" Dial Size, Liquid Filled Pool Filter Pressure Gauge, 304 Stainless Steel Case, 0-35psi/250kpa,1/4" NPT Center Back Mount

Feature

Description

Description
This pressure gauge is designed for pressure measuring and adjustment on the filter for swimming pool, spa, aquarium etc.

Dial size : 2″
Process connection: 1/4″NPT center back mount male
Case : 304 stainless steel case and crimped ring
Window : Polycarbonate
Dial plate : aluminum, with pointer stop
Pointer : Aluminum, black, DIN style
Boudon tube : Copper alloy
Movement : Brass
Connection : Brass, one piece design
Oil cap : rubber, gray color
Filling : Glycerin filled, dampens the effect of vibration and pulsation; lubricates the movement and extends the life of gauge.
IP class : IP67
Accuracy : +/-3-2-3%
Pressure range : 0-35psi/250kpa dual scale
Color zone, blue zone for filter 0-17.5psi, red zone for clean 17.5 to 35psi
Working temperature : -4 to 140 deg F/-20 to 60 deg C
Ambient temperature : 140 deg F/60 deg C maximum

Meaureman has 20 years rich experience in the measuring of pressure, temperature, flow, level industries, The “Measureman” branded products are the combination of continuous good quality and affordable price. “Measureman” products are selected and designed by professional engineers.

Conclusion

By our suggestions above, we hope that you can found Liquid Filled Vacuum Pressure Gauge for you.Please don’t forget to share your experience by comment in this post. Thank you!
